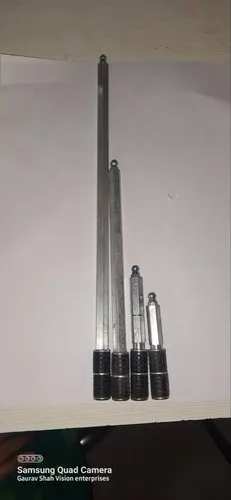

Usage/Application: Spray Material: SS Brand: VE Packaging Type: Box Surface Finishing: Polished Epoxy injection grouting nozzles are specialized tools used to inject epoxy resin into cracks, voids, and other openings in structures like concrete, rock, and masonry. They play a crucial role in strengthening, waterproofing, and repairing compromised structures. Here's a breakdown of their key aspects: Function: Deliver epoxy grout under pressure into tight spaces with precise control. Prevent grout backflow during injection. Create a secure seal within the drilled hole. Types: Single port nozzles: Basic design with one opening for grout injection. Multi-port nozzles: Feature multiple outlets for injecting grout in different directions to fill larger voids. Packer nozzles: Combine a nozzle with a mechanical or hydraulic packer for increased sealing and pressure capacity. Custom nozzles: Can be made with specific lengths, angles, and materials for unique applications. Common Materials: Stainless steel: Offers durability, corrosion resistance, and high pressure tolerance. Aluminum: More lightweight and cost-effective, but less resistant to high pressure and corrosive environments. Polyurethane: Suitable for low-pressure applications and temporary installations. Key Features: Size and length: Matched to the diameter and depth of the drilled hole. Port sizes and angles: Determine the flow rate and direction of grout injection. Pressure rating: Indicate the maximum pressure the nozzle can handle without failure. Thread type: Must match the connection point on the injection equipment. Ease of cleaning: Some nozzles have simple designs for easy cleaning and reuse. Applications: Crack repair in concrete structures like buildings, bridges, and foundations. Soil and rock stabilization for infrastructure projects. Waterproofing tunnels, basements, and other structures. Strengthening structures exposed to high loads or vibrations. Bonding different materials like concrete and steel.

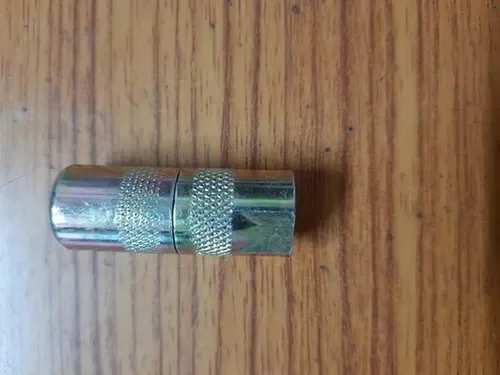

Capacity: 1-2 ton Brand: VE Material: SS Customisation: Not Customised Diameter: Standard Packaging Type: Box Surface Finish: Polished Here's information on PU grouting injection packers: What they are: Small, cylindrical devices made of steel or plastic that are inserted into drilled holes in concrete or masonry structures. They provide a sealed connection point for injecting polyurethane (PU) grout into cracks, voids, or joints to fill them and strengthen the structure. Packers come in various sizes and shapes, with threaded connections or push-fit designs to suit different applications. How they work: Drilling: Holes are drilled at specific locations in the structure where grout injection is needed. Packer insertion: The packer is inserted into the hole and secured in place, typically using a threaded connection or a locking mechanism. Grout injection: PU grout is pumped through a hose or pipe into the packer, filling the voids and cracks around it. Cure: The grout expands and cures, solidifying and bonding to the surrounding material, creating a strong, watertight seal. Packer removal (optional): Once the grout has cured, the packer can be removed, or in some cases, it's left in place for future maintenance or monitoring. Key features: Threaded connections: For secure attachment to injection hoses or grout pumps. Non-return valves: Prevent backflow of grout during injection. Pressure ratings: Indicate the maximum pressure they can withstand. Material compatibility: Designed for use with PU grouts. Reusable or disposable: Some packers can be reused, while others are single-use. Common applications: Crack repair: Filling cracks in concrete structures to restore strength and prevent water ingress. Void filling: Filling voids under concrete slabs to stabilize them and prevent settlement. Joint sealing: Sealing joints in concrete walls and floors to prevent water leakage. Waterproofing: Creating a watertight barrier in basements, tunnels, and other below-grade structures. Structural strengthening: Reinforcing concrete structures by filling voids and cracks, increasing load-bearing capacity.

Material Aluminum and PVC Usage/Application: Grout Pump Brand: Vision Enterprises Packaging Type: Packet Shape: Ring Shaped Country of Origin: Made in India There are many different types of injection grout pump spares available, depending on the specific pump you have and the type of grouting you're doing. Here's a breakdown to help you identify what you might need: By Pump Type: Epoxy/PU Grouting Pumps: These pumps typically require spares like packing sets, piston rings, check valves, and nozzles specific to the material being pumped. Cement Grouting Pumps: Spares for these pumps often include wear plates, impellers, seals, and gaskets that can handle the abrasive nature of cement grout. Electric vs. Pneumatic Pumps: Depending on your pump type, you might need different spare parts like motors, solenoids, air regulators, or pressure gauges. Common Spares: Packings and Seals: These create a tight seal between moving parts and prevent leaks. Choose the right material based on the grout type and pressure requirements. Valves and Check Valves: These control the flow of grout and prevent backflow. Different types include one-way valves, foot valves, and needle valves. Pistons and Rods: These are the core components that push the grout. Ensure they're the correct size and material for your pump and application. Hoses and Fittings: These connect the pump to the injection point and need to be able to handle the pressure and material. Choose the right length and diameter based on your needs. Nozzles and Packers: These control the direction and flow of grout at the injection point. Different types are available for specific applications.

Capacity: 1.1 Lpm Model Name/Number : Digital injection grouting machine -03 Gross Weight: 8 Kg Max Output Pressure: 500 Bar Pipe: 5 m Pressure: 4000 psi Usage/Application: Injecting Epoxy and PU Viscosity: 1.15 Injection grouting digital machines are advanced tools used to inject grout, a mixture of cement, sand, and water, into cracks and voids in concrete and other materials. Compared to traditional grouting methods, they offer several advantages: Precision: Digital control systems ensure accurate mixing ratios and injection pressures, leading to consistent and reliable results. Monitoring: Real-time data on flow rate, pressure, and material consumption allows for precise control and optimization of the grouting process. Data recording: Grouting parameters can be recorded and stored for future reference or quality control purposes. Versatility: Digital machines can handle various grout materials and work with different injection patterns and strategies.

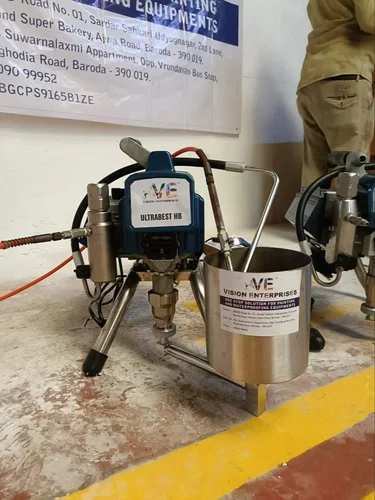

application: spray pump Used: printing space: standard capicity: standard Epoxy Pu injection grouting pump with latest technology of auto cutoff technology , auto restart , also can handle pressure upto 30 mtrs The industry's best electric motor bldc motor of 1.7 hp , can push material upto 30-40 mtr , inject upto 200 ltrs per day . Best for large projects , non stop working as the material handling is made up of ceramic piston and ceramic sleeve . For more details call or whatsapp us on 6352612063. Additional Information: Item Code: UBHBHopper Production Capacity: daily Delivery Time: regular Packaging Details: Box packing with thrermocol packing

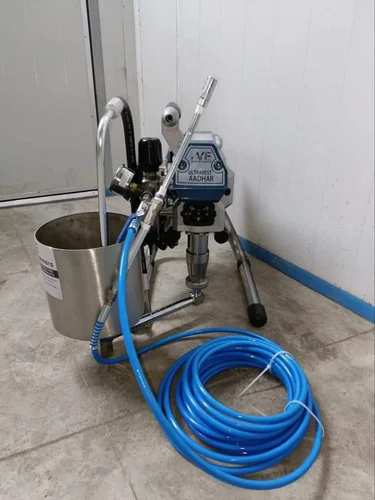

Application: grounting machine Colour: BLUE BLACK material: SEMI AUTOMATIC SS BODY model name: UB AADHAR capicity: upto 10 ltr Epoxy Pu injection grouting pump "Ultrabest Aadhar" has latest technology of automatic cut opp and auto restart with additional feature of hopper enabling easy cleaning . The higher delivery capacity with bigger motor of 900 watts enables to give more productive results , also due to bigger motor can be extended upto 20 mtrs length against standard 5 mtr length . Feel comfortable Additional Information: Item Code: UBAadhar84242000 Production Capacity: daily Delivery Time: 3-5 Packaging Details: Box Packing

Model Name/Number: VE IG-02 Gross Weight: 9 Kg Max Output Pressure: 500 Bar Mixing Ratio: 1:1 Voltage: 220 V Wattage: 650 W Two-component injection grouting machines, unlike the Bosch VE mentioned previously, deal with injecting two separate components of a grout material that mix and react upon injection. These machines are used for various applications like: Filling cracks and voids in concrete structures: The grout solidifies within the cracks, strengthening the structure and preventing water infiltration. Foundation stabilization: Injecting grout beneath an uneven foundation helps level it and improve its stability. Waterproofing: Certain grouts create a watertight barrier against leaks and seepage. Anchoring bolts and post-tensioning tendons: Grouting ensures proper fixing of these elements for structural integrity.

Model Name/Number; VE IG-01 Gross Weight: 7Kg Max Output Pressure: 500Bar Voltage: 220V Wattage: 500W The machine consists of a pump, a reservoir, and a packing gland. The pump is used to draw the resin from the reservoir and inject it into the cracks or voids. The packing gland is used to prevent the resin from leaking back out of the pump. The Bosch VE Injection Grouting Machine has a maximum output pressure of 500 bar (7250 psi) and a flow rate of 1 liter per minute. It is also equipped with an automatic return system that prevents the resin from hardening in the pump. The Bosch VE Injection Grouting Machine is typically used for grouting cracks in foundations, walls, and floors. It can also be used for filling voids in concrete structures, such as around anchor bolts or post-tensioning tendons. If you are looking for a portable and easy-to-use grouting machine, the Bosch VE Injection Grouting Machine is a good option. However, it is important to note that this machine is not suitable for grouting large or deep cracks or voids. For these applications, you would need a more powerful grouting machine. Here are some of the advantages of using the Bosch VE Injection Grouting Machine: Portable and easy to use High output pressure Automatic return system Affordable Here are some of the disadvantages of using the Bosch VE Injection Grouting Machine: Not suitable for large or deep cracks or voids Can be difficult to clean Not as durable as some other grouting machines

Injection Grouting Type: PU Property Type: Commercial Applicable Area: Concrete Surfaces Weight: 9 Kg Maximum Output Pressure: 450 Bar Brand: Vision Enterprises Power: 700 W Voltage: 440 V vision enterprises epocy injection grouting machine with bosch drill & steel cup PU injection grouting pumps are specialized tools used to inject polyurethane (PU) resin into cracks, voids, and other gaps in concrete and masonry structures. The resin expands and hardens, filling the gaps and strengthening the structure. Here's an overview of PU injection grouting pumps: Types: Manual pumps: These are portable and hand-operated, ideal for small-scale projects or tight spaces Electric pumps: More powerful than manual pumps, suitable for larger projects and higher injection pressures. Pneumatic pumps: Offer high flow rates and pressure for large-scale grouting jobs Key features: Mixing ratio control: Ensures accurate mixing of the PU resin and hardener in the desired ratio (typically 1:1). Injection pressure: Varies depending on the pump type and model, typically ranging from 100 bar to 750 bar. Flow rate: Determines the speed of grout injection, ranging from 0.5 L/min to 10 L/min. Material compatibility: Should be compatible with the specific PU resin and hardener being used.
