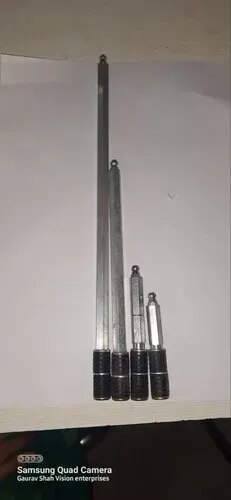

Pu Grouting Packers

Capacity: 1-2 ton

Size: standard

Brand: VE

Color: Silver

Material: SS

Customisation: Not Customised

Surface Finish: Polished

Pu Grouting Packers: Sealing Cracks with Polyurethane Power

Polyurethane (PU) grouting packers are essential tools for injecting polyurethane resins into cracks and voids in concrete structures. They play a crucial role in various repairs and strengthening applications, making them invaluable for construction professionals. Here's a breakdown of what you need to know about PU grouting packers:

Function:

Act as ports for inserting and injecting PU grout under high pressure.

Create a tight seal within the crack to prevent grout leakage and ensure effective filling.

Withstand significant pressure applied during the grouting process.

Types:

Single-port: Basic design with a single opening for grout injection.

Multi-port: Feature multiple outlets for distributing grout over wider areas or targeting specific points within the crack.

Check-valve: Includes a built-in valve that prevents grout backflow, ideal for horizontal or overhead applications.

Removable/Re-usable: Can be extracted after injection and reused for multiple applications.

Disposable: Designed for single-use, reducing cleanup time and potential contamination.

Materials:

Stainless steel: Highly durable and resistant to corrosion, preferred for high-pressure injections and demanding environments.

Nylon/Polypropylene: Lighter weight and more affordable, suitable for smaller cracks and lower pressure applications.

Key Features:

Size variations: Available in various diameters to fit different crack widths.

Connection types: Threaded or glued connections for secure attachment to injection hoses or pumps.

Pressure ratings: Choose packers that can withstand the anticipated injection pressure for optimal performance.

Ease of installation: Quick and simple installation saves time and effort on the job site.

Applications:

Crack repair: Filling and sealing cracks in concrete walls, floors, foundations, and other structures.

Strengthening: Injecting PU grout to increase the load-bearing capacity of concrete elements.

Waterproofing: Sealing leaks and preventing water infiltration through cracks.
